Electrical Fault Finding: Step-by-Step Troubleshooting for Homes & Businesses

Is your kitchen suddenly dark, or has the office printer stopped mid-page? Electrical faults can strike at any time—sometimes with a fizzle, sometimes with a bang, sometimes with nothing but silence. It’s never convenient and rarely safe to ignore.

At O & M Electricians, we know that every flickering light or tripped breaker feels urgent. And while not every fault is an emergency, each one deserves your attention—handled carefully and with the right know-how.

Signs of Electrical Faults ⚡

Electrical systems often whisper their warnings before shouting for help. Here’s what to watch for:

• Frequent Tripped Breakers: If you’re flipping breakers back on more than once a month, something’s off.
• Dead Outlets or Switches: Outlets that don’t deliver power, or switches that do nothing, are waving a red flag.
• Flickering or Dimming Lights: Lights that pulse or fade, especially when other devices turn on, can signal overloaded circuits or loose wiring.
• Burning Smell, Scorch Marks, or Warm Faceplates: Smells of burning plastic, dark marks, or outlets/switches that feel hot? Turn off power at the breaker immediately.
• Buzzing, Crackling, or Zapping Sounds: Never normal. These sounds mean electricity is arcing or connections are loose.
• Unexpected Power Loss: If a whole section of your home or business goes dark, it could be a faulty circuit or main panel issue.

If these symptoms sound familiar, it’s time to pay attention.

Tools and Precautions

Before you peek behind any cover plate, gather a few basics:

• Non-contact Voltage Tester: Checks if an outlet or wire is live—without risk.
• Insulated Screwdriver: Prevents accidental shocks.
• Flashlight: For peering into dark corners or breaker boxes.
• Notebook: Jot down what you check and what you find. Patterns can reveal more than you think.
• Safety Glasses and Gloves: Protection first, always.

Important: Always turn off power at the main breaker before removing covers or touching wiring. Never work alone. If you’re unsure, stop and call an electrician for fault finding near you.

Step-by-Step Troubleshooting Checklist

Ready to roll up your sleeves? Here’s a safe, methodical path to pinpointing minor electrical issues:

1. Check What’s Not Working

Identify what’s affected. Is it a single outlet, a set of lights, or a whole area? Write down everything that isn’t working. Sometimes, unrelated problems reveal a bigger pattern.

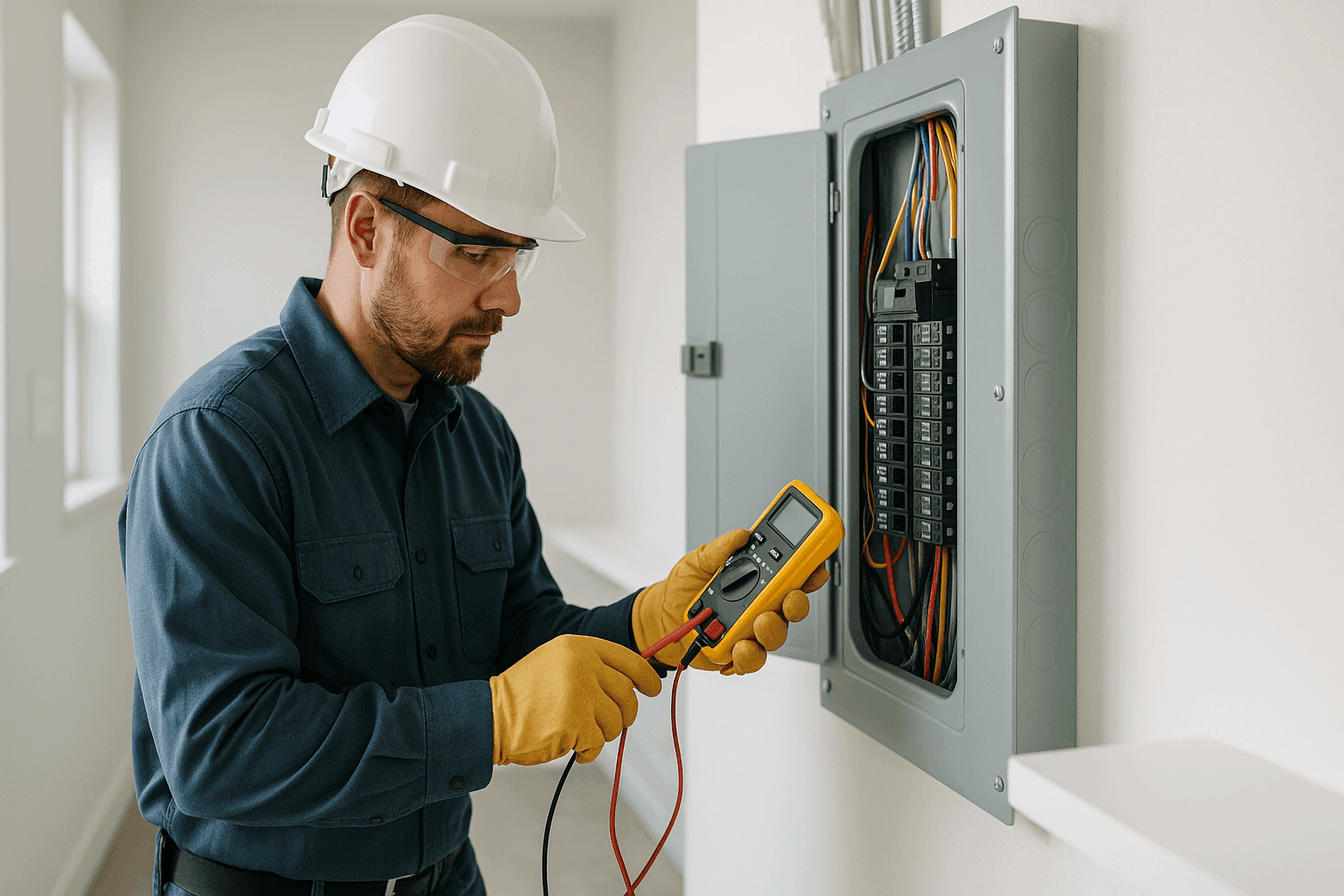

2. Inspect the Breaker Panel

• Open the breaker box. Look for any switches in the “off” or neutral position.
• Reset tripped breakers: Push all the way to “off,” then firmly to “on.”
• If a breaker trips again immediately, don’t force it. There’s likely a short or overload.

3. Test Outlets and Switches

• Use a non-contact tester to check if outlets are live.
• Plug in a lamp or phone charger to double-check.
• If other outlets on the same wall or room are also dead, you may have a circuit fault.

4. Look (and Smell) for Physical Clues

• Check for discoloration, heat, or odor around outlets, switches, or the panel.
• Listen for any unusual sounds.

5. Inspect Appliances and Devices

• Unplug all devices from the affected circuit.
• Try resetting the breaker again. If it stays on, a faulty appliance may be the culprit.

6. Note Patterns

Did the problem start after a storm? When you plugged in something new? After renovations? These clues matter.

7. Don’t Attempt Repairs Beyond Your Comfort

Simple resets and unplugging are safe. Anything involving wiring, panel work, or persistent issues requires a certified electrician.

When to Call a Professional 🛠️

Some jobs are like changing a lightbulb. Others are like rewiring the brakes on a moving train. Know when to step back:

• Persistent Tripping: If a breaker won’t reset or trips repeatedly, call for professional electrical fault finding near you.
• Signs of Burning or Damage: Scorch marks, melted plastic, or hot outlets need immediate attention.
• You’re Unsure: If you don’t know what’s wrong or how to fix it, don’t risk it.
• Commercial Complexities: Business wiring, machinery, or high-voltage systems should only be handled by licensed pros.

Certified electricians, like those at O & M Electricians, work to Australian/New Zealand standards (AS/NZS 3000: Wiring Rules) and NEC guidelines in North America. Safety is never optional.

What Professionals Do On Arrival

When O & M Electricians arrives, here’s what you can expect:

• Thorough Inspection: Visual and physical checks of panels, outlets, switches, and devices.
• Advanced Testing: Use of multimeters, thermal cameras, and circuit tracers.
• Root Cause Analysis: Isolating whether the problem is in the wiring, panel, devices, or external sources (like utility lines).
• Clear Explanation: After diagnosis, we’ll explain what’s wrong, outline safe solutions, and provide options.
• Repairs & Certification: We repair, replace, and test—always to code, with complete documentation for insurance or compliance.

Prevention & Maintenance

The best electrical problems are the ones that never happen. Here’s how to keep your systems running safely:

• Annual Safety Inspections: Regular checks catch small issues before they spark bigger trouble.
• Upgrade Old Wiring: If your property is over 30 years old, consider rewiring for modern loads.
• Install Surge Protection: Especially in storm-prone regions or if you use sensitive electronics.
• Test Smoke & Carbon Monoxide Detectors: Monthly. Replace batteries twice a year.
• Don’t Overload Circuits: Spread out large appliances and high-draw devices.
• Schedule Maintenance: For pool/spa systems, commercial machinery, or EV chargers, plan routine checkups.

Costs & Time Factors

Electrical fault finding isn’t one-size-fits-all. Here’s what affects the time and cost:

• Scope: A single dead outlet is faster (and less costly) than diagnosing a whole-building outage.
• Accessibility: Easy-to-reach panels and outlets take less time to check.
• Complexity: Modern smart homes and commercial systems can involve advanced diagnostics.
• Emergency or After-Hours: 24-hour service is available, but rates may be higher outside regular hours.

Most simple faults can be found and fixed in an hour or two. Larger, more complex issues may require return visits or replacement parts.

When It’s an Emergency 🚨

Not all faults can wait. Call for immediate help if you experience:

• Burning smells, smoke, or visible fire
• Sparking from outlets, panels, or cords
• Complete power loss (especially in businesses with perishable inventory or safety-critical equipment)
• Flooded electrical rooms or panels following storms

If safe to do so, turn off the main breaker and evacuate. Call emergency services first if there’s fire or risk of harm.

FAQ

Q: Can I fix a tripped breaker or dead outlet myself?
A: You can safely reset breakers and unplug devices. If the problem returns or you notice heat, burning smells, or damage, call a qualified electrician.

Q: Is it safe to use extension cords as a permanent fix?
A: No. Extension cords are for temporary use only. They can overheat and cause fires if overloaded or hidden under rugs.

Q: How often should I have my electrical system inspected?
A: Residential: every 5–10 years, or after purchasing a new property. Commercial: annually, or as required by local safety codes.

Q: What causes frequent power surges?
A: Surges may be caused by storms, utility issues, faulty appliances, or outdated wiring. Surge protectors help, but the underlying cause should be addressed by an electrician.

Local & Seasonal Considerations

Storms and seasonal changes can stress your electrical system. After heavy rain, flooding, or lightning, always inspect for damage. In winter, heaters add load; in summer, air conditioning does the same. If you’re in an area with frequent power outages or surges, consider a backup generator and whole-house surge protector.

Businesses: machinery, holiday lighting, and increased equipment use can all push circuits past their limits. Schedule pre-season checkups to avoid downtime.

Electrical faults are like potholes—small at first, but growing if ignored. Whether it’s your home’s peace of mind or your business’s uptime at stake, it pays to act promptly—and safely.
